Mobile LED Sequential Hazard Set
Series Features
- Easy activation and synchronization (process occurs in the transport and charging case by using the toggle switch).
- Gives clear recognition to other drivers on upcoming incident.
- Lights are synchronized to guide drivers safely past the incident.
- Accidently driving over the guiding lights cause no damage upto 40 tons to the device or vehicle, and are completely waterproof.
- A set consists of 5 LED Guide Light Devices (yellow ,blue or red) in a combined transport and charging case with charging cable.
- The small case is suitable for limited spaces like the outer or inner storage compartment of trucks or the interior of emergency vehicles.
- The charging cable can be connected with the cigarette lighter or the on-board socket.
- FIELD TESTED FOR MAXIMUM QUALITY
Specifications
Power Supply:10 - 30 Volt DC
Operating Time:> 12 hours
Stability of Sequence:> 4 hours
Battery Type:Nickel-Cadmium (LED Guide Light Elements)
Charging Time (Approx):10 hours for completely discharged battery
Current Consumption:Approx. 0,5 A at completely discharged battery
10mA at completely charged battery
On-Time:100ms
Max. Light Intensity:Yellow approx. 500 cd, blue approx. 100 cd
Light Opening:15° horizontal / vertical
Guide Light Time:120ms from element to element
Pulse Rate:60 pulses/min, 1Hz
Insulation:IP66 (LED Guide Light Elements)
Dimensions:LED Guide Light Elements 100 x 90 x 25mm
Transport and charging case 260 x 160 x 125mm
Weight:2,5kg
Power Supply:10 - 30 Volt DC
Operating Time:> 12 hours
Stability of Sequence:> 4 hours
Battery Type:Nickel-Cadmium (LED Guide Light Elements)
Charging Time (Approx):10 hours for completely discharged battery
Current Consumption:Approx. 0,5 A at completely discharged battery
10mA at completely charged battery
On-Time:100ms
Max. Light Intensity:Yellow approx. 500 cd, blue approx. 100 cd
Light Opening:15° horizontal / vertical
Guide Light Time:120ms from element to element
Pulse Rate:60 pulses/min, 1Hz
Insulation:IP66 (LED Guide Light Elements)
Dimensions:LED Guide Light Elements 100 x 90 x 25mm
Transport and charging case 260 x 160 x 125mm
Weight:2,5kg

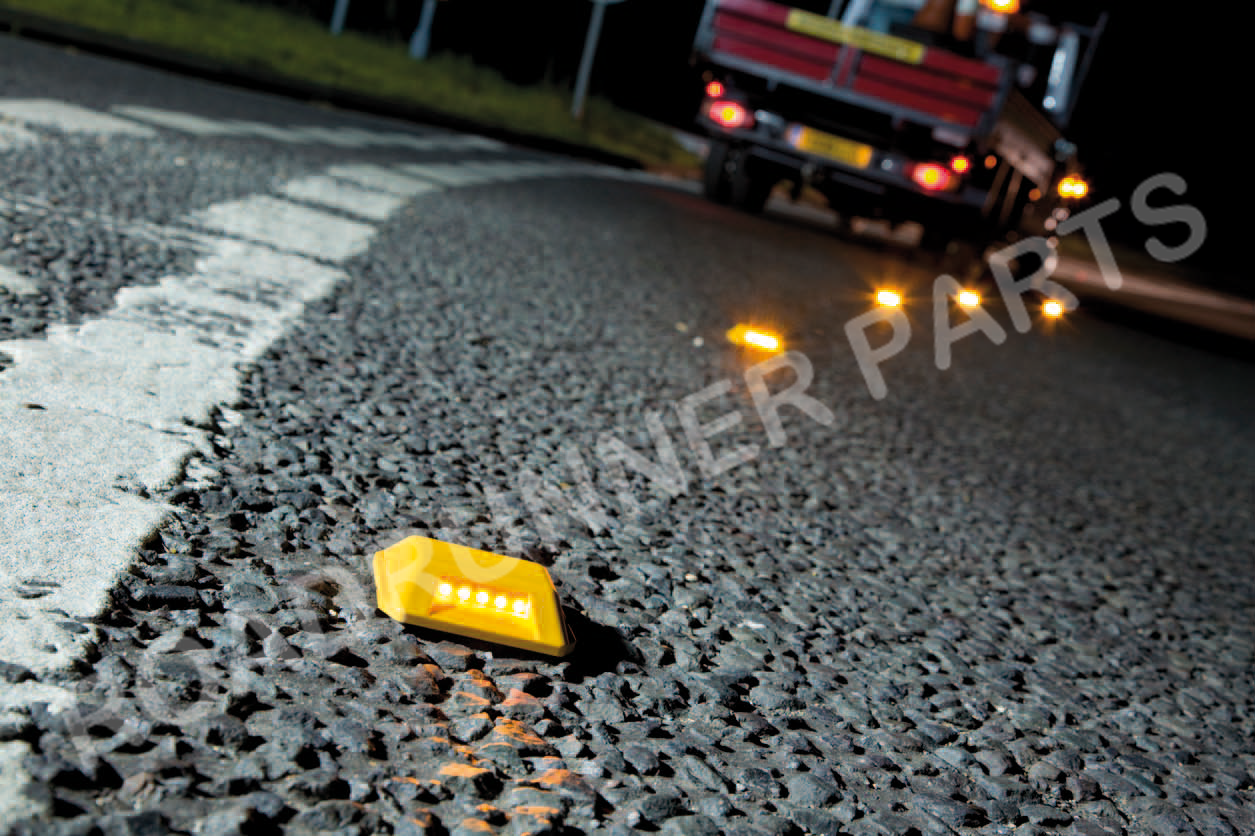

LED Synchros In Action
